Description

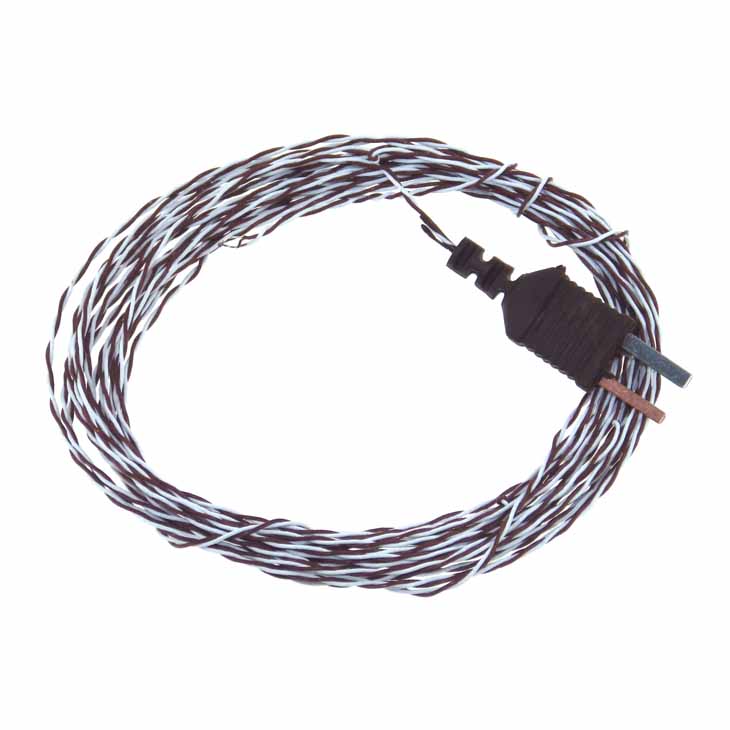

TA01-V T Type Fine Wire Probe. This sensor is constructed using PTFE wire constructed as a flat pair. The wire used is 1/2 Class 1 Type T alloys (Cu/Co). A weld bead is manufactured at one end of the wire whilst the other end is terminated in a moulded miniature thermocouple plug. This probe is available in various lengths up to 20 meters. Used for applications such as air, liquid or surface temperatures
Features
• Thermocouple Type – T
• Accuracy – ½ Class I (±0.25°C ±0.15%)
• Measurement Range -100 to 250°C
• Length – 1, 3, 5, 10 or 20 meters
• Diameter – 0.3mm
• Plug Type – Moulded 2 pin
Requires: A digital thermocouple thermometer.
